Description:

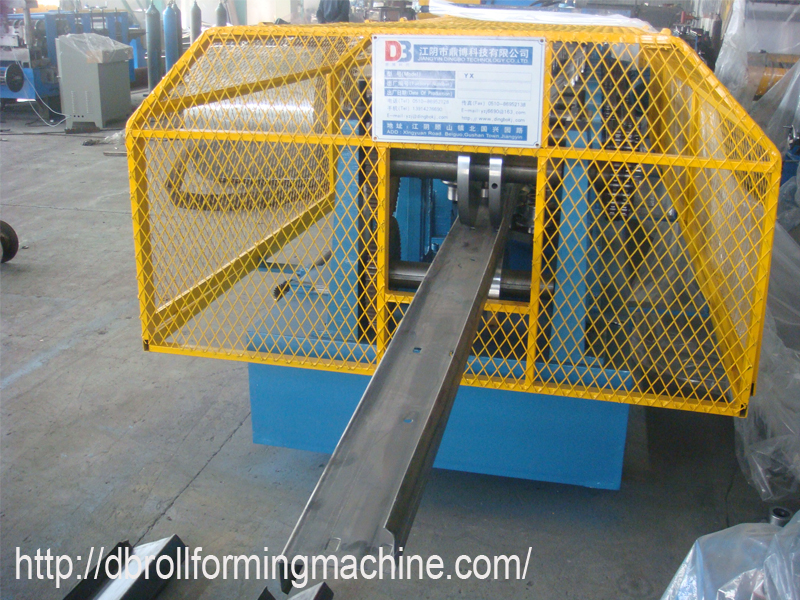

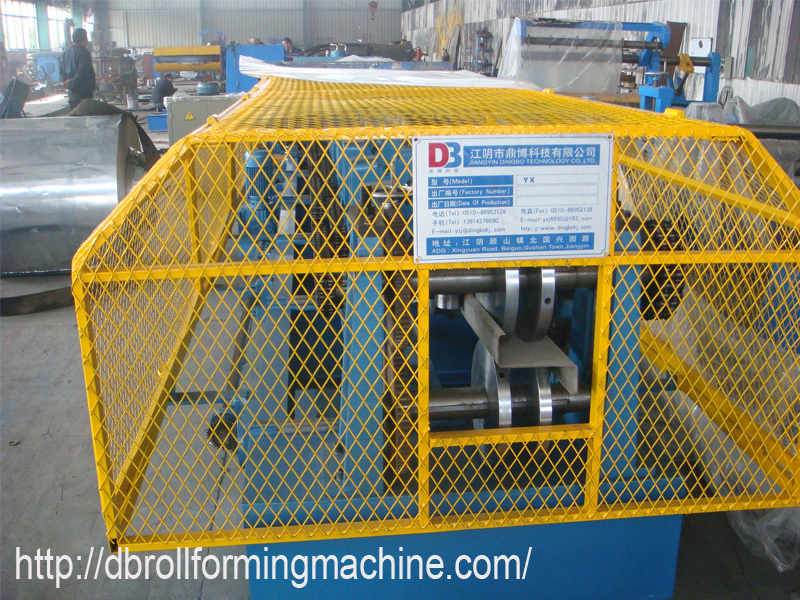

Z purlin roll forming machine, with Z-shaped roll forming mold of the section, possesses features of automatic fixed-length cutting and automatic punching. The Z purlin steels output from the machine are of good bending and pressing resistance as well as good flatness. They are mainly used in large steel structure workshops. Z steel purlin forming line can produce various kinds of profiles and cold rolled steels in regular thickness.
Z purlin roll forming machine is mainly consisted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. The machine runs very smoothly and can be debugged with little noise.

Operation and Maintenance:
1.    Z purlin roll forming machine, totally controlled by PLC, is fairly easy to operate. What the user only needs to do is inputting the number of products, length and punching dimension, and other related production data;
2.    If users want to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3.    Regular lubrication for chain wheel, bearing and speed reducer of Z steel purlin forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters Z Purlin Roll Forming Machine:

Suitable to process Colored steel plate, galvanized board
Width of the plate 100-300mm(valid)
Roller station 16 groups
Rolling material Cr bearing steel
Rolling galvanization thickness 2.0-3.0mm
Material of the cutting blade Cr12mov
Dimensions Approx 10m×1.2m×1.5m
Power of Z purlin roll forming machine 18.5kw
Thickness of the plate 2.0-3.0mm
Productivity 7m-12m/min
Diameter of the roller 85mm
Weight About 5T
Voltage 380V 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:
We deliver Z purlin roll forming machines by sea shipping in container and nude packing.

As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides Z purlin roll forming machine, we also professionally output C purlin roll forming machine, C-Z quick change forming machine, U purlin roll forming machine and W purlin roll forming machine. Our Z steel purlin forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
