C-Z Purlin Roll Forming Machine, Interchangeable Roll Forming Machinery

C-Z Quick Change Forming Machine

C-Z Quick Change Forming Machine
C-Z Purlin Roll Forming Machine C Purlin Roll Forming Machine Z Purlin Roll Forming Machine

Description:

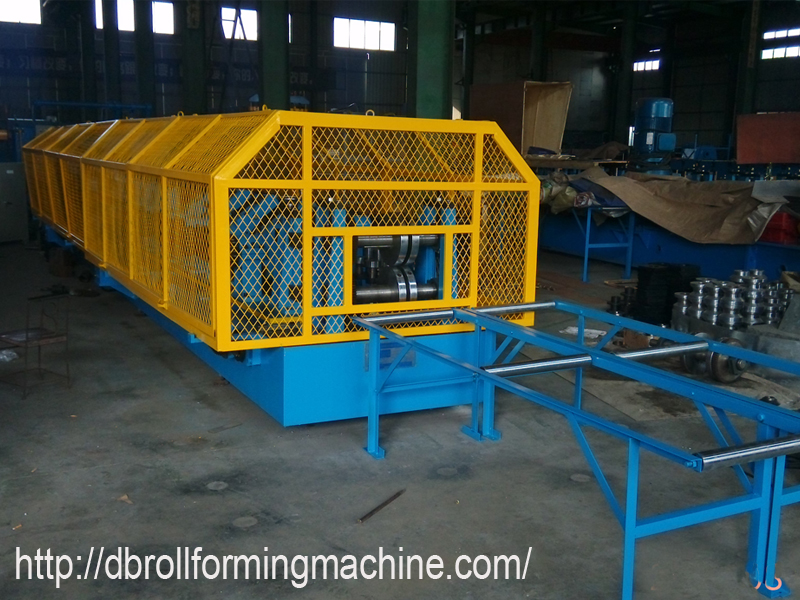

C-Z purlin roll forming machine is used for processing C/Z purline with thickness from 1.5mm to 3.0mm. It is simple and convenient to install C/Z purlin interchangeable roll forming machinery and interchange C and Z purline. Adopting PLC control system, C-Z quick change forming machine possesses good features of fast operation, high precision, high accuracy of length cutting as well as low cost.

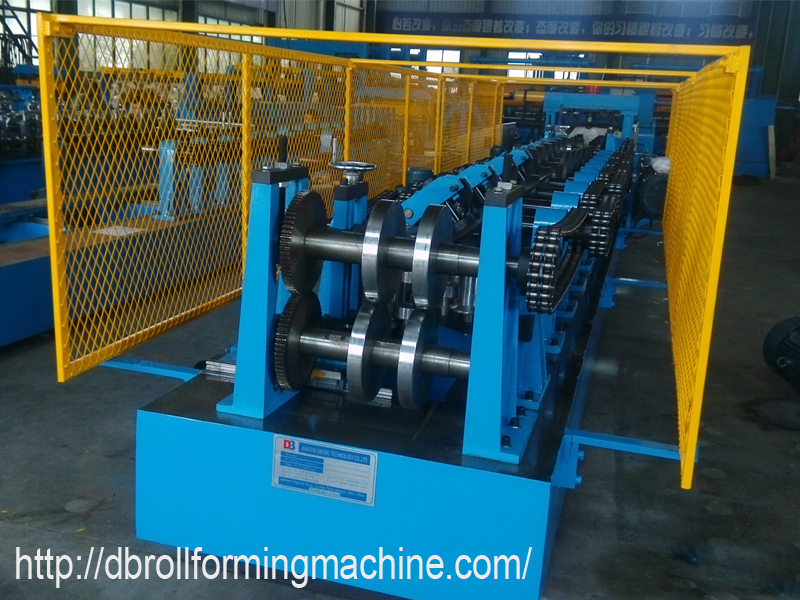

C-Z purlin roll forming machine is mainly consisted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. The machine runs very smoothly and can be debugged with little noise.

Operation and Maintenance:
1.    C-Z purlin roll forming machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2.    If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3.    Regular lubrication for chain wheel, bearing and speed reducer of C-Z purlin roll forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters of C-Z Purlin Roll Forming Machine:

Suitable to process Colored steel plate, galvanized board
Valid width 200-300mm
Rollers 16 groups
Rolling material Gcr15 bearing steel
Rolling galvanization thickness 2.5-3.0mm
Material of the cutting blade Cr12mov
Dimensions Approx 9m×1.5m×1.5m
Power 15kw
Thickness of the plate 2.5-3.0mm
productivity 10m-15m/min
Diameter of the roller 85mm
Weight About 14T
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:
We deliver C-Z quick change forming machines by sea shipping in container and nude packing.

As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides C-Z purlin roll forming machine, we also professionally output C purlin roll forming machine, Z purlin roll forming machine, U purlin roll forming machine and W purlin roll forming machine. Our C/Z interchangeable roll forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
