Floor Deck Roll Forming Machine

Floor Deck Roll Forming Machine

Description:

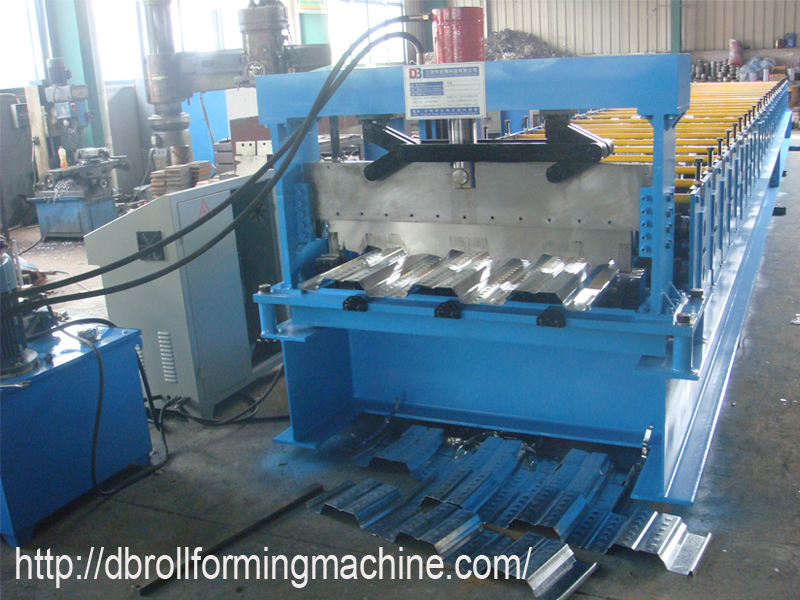

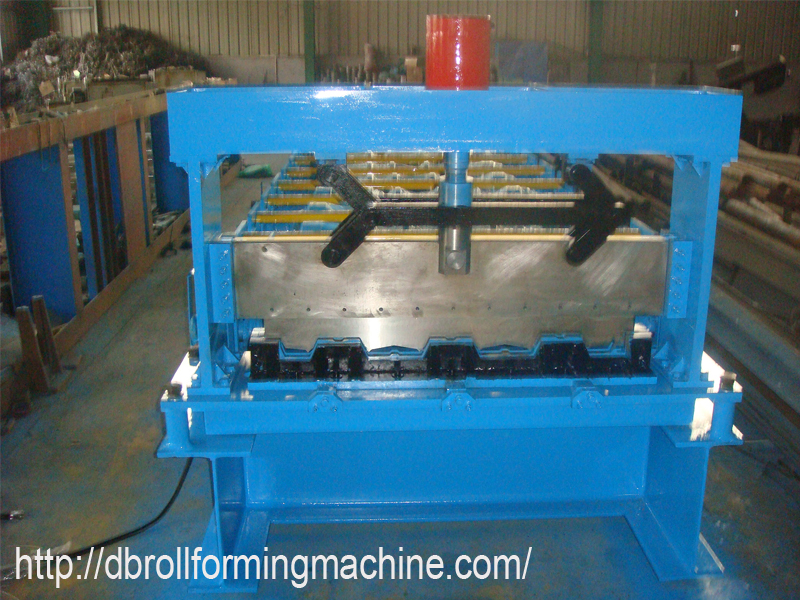

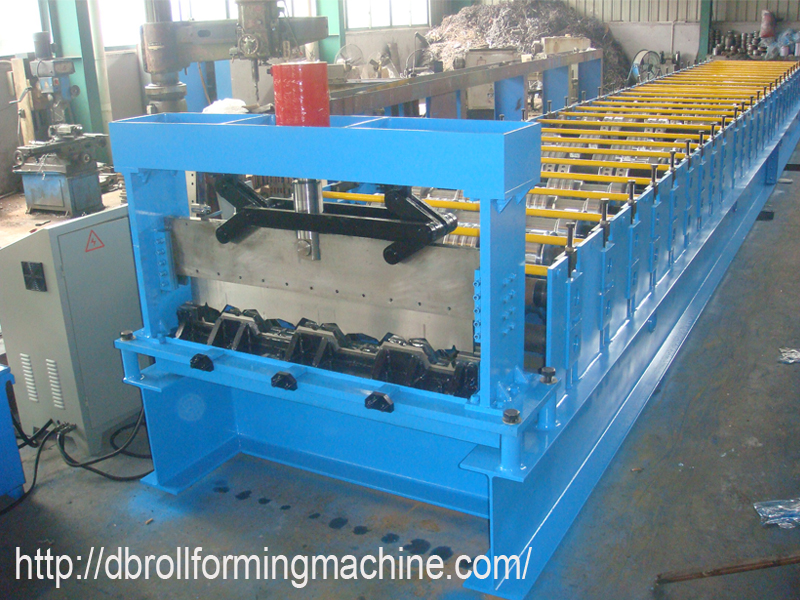

Floor deck roll forming machine, also known as floor decking forming machine, produces sheets which mainly adopted in composite floor system. Combined with concrete slab, composite floor forms part of the floor structure. Interlocked by protuberances and girders internally installed in the machine, concrete slab and floor deck merged into reinforced concrete slabs. With its advantage, the floor deck roll forming machines are widely used in various steel constructions;
The machine is mainly constituted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Operation and Maintenance:
1.    Floor deck roll forming line, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2.    If the user need to adjust the machine or something else, he/she must firstly stop the machine before carrying out relevant operations;
3.    Regular lubrication for chain wheel, bearing and speed reducer of floor deck roll forming machine should be conducted carefully. And the forming rollers should be kept clean;
4.    With high performance in operation, floor deck roll forming machine is of little noise.

Parameters of Floor Deck Roll Forming Machine:

Suitable to process Colored steel plate, galvanized board
Width of the plate 1200mm
Rollers 30 groups
Rolling material Forging steel 45#
Rolling galvanization thickness 0.7-1.5mm
Material of the cutting blade Cr12mov
Dimensions Approx 20m×1.6m×2m
Power 22kw
Thickness of the plate 0.7-1.5mm
Productivity 10m-15m/min
Diameter of the roller 85mm
Weight About 8T
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:
We deliver floor deck roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a professional manufacturer and supplier of floor deck roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company provides customers with superior machines, excellent services and reasonable price. As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Our floor deck roll forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
