K Span Curving Machine, Large Span Curving Roof Forming Machine

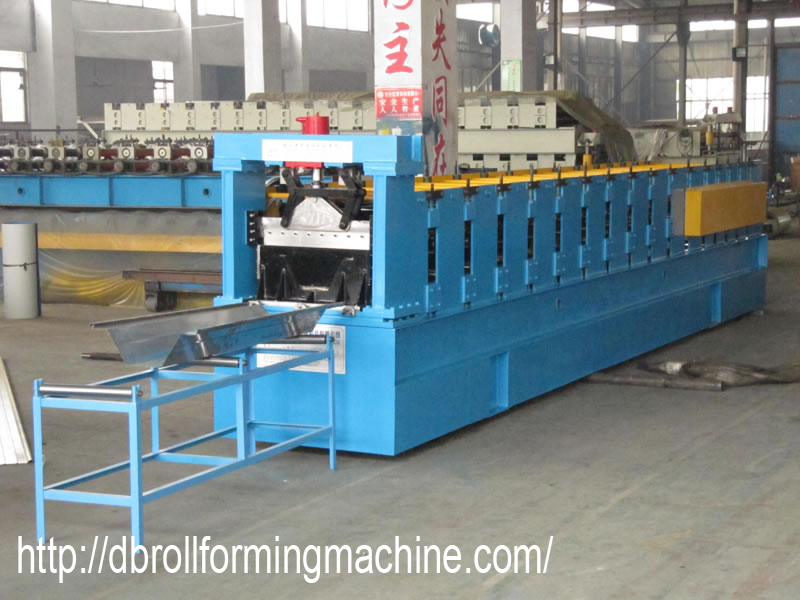

K Span Curving Machine

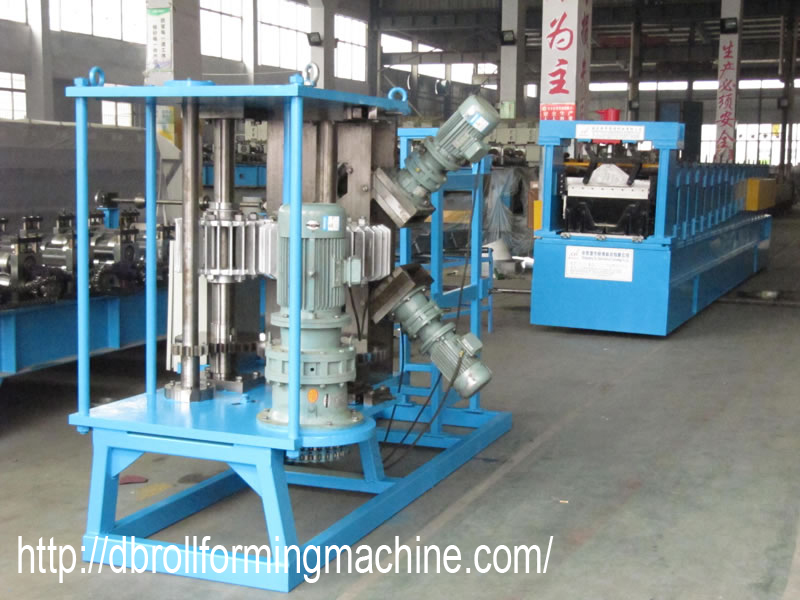

K Span Curving Machine

Description:
Curving is a kind of technology that curves panel and profile materials by rotation rollers. K span curving machine, also known as large span curving roof forming machine, is mainly composed of uncoiler, computer control system, hydraulic control system and rollers. The main components of this bending machine are motor and bending rolls. The K span curving machine can be debugged with little noise to realize a high performance in operation.

Operation and Maintenance:
1. K span curving machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. The maintenance is very easy. Regular lubrication for chain wheel, bearing and speed reducer of large span curving roof forming machines should be conducted carefully. And the forming rollers should be kept clean.

Parameters:

Suitable to process Colored steel plate, galvanized board
Width of the plate 1250mm
The max bending angle 120°
Rolling galvanization thickness 0.3-0.8mm
Dimensions Approx 9m×1.8m×1.5m
Power of K span curving machine 1.5kw
Thickness of the plate 0.3-0.8mm
productivity 0-8m/min
Hydraulic power 5.5kw
Control system PLC Panasonic
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:
We deliver K span curving machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of K span curving machines in China. As an ISO 9001:2000 Quality Control System certified company, our company has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Beside K span curving machine, we also professionally provide K span roll forming machine. Our large span curving roof forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
