K Span Roll Forming Machine

K Span Roll Forming Machine

Description:

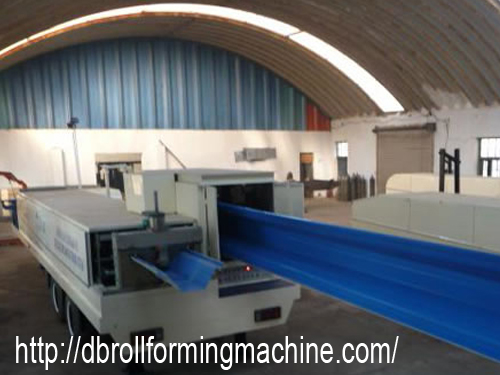

K span roll forming machine, also known as roll former, can be divided into vehicle-mounted k-span forming machine and floor-mounted k-span forming machine. It is mainly composed of decoiler, roll former, cutting device, curving machine, product table and computer control system. To realize a high performance in operation, K span roll forming machine can be debugged with little noise.

Operation and Maintenance:
1. K span roll forming machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. The maintenance is very easy. Regular lubrication for chain wheel, bearing and speed reducer of roll former should be conducted carefully. And the forming rollers should be kept clean.

Parameters of K Span Roll Forming Machine:

Suitable to process Colored steel plate, galvanized board
Valid width 247mm
Rollers 15 groups
Rolling material Cr15 bearing steel
Rolling galvanization thickness 3-4.5mm
Material of the cutting blade Cr12mov
Dimensions Approx 10m×1.2m×1.5m
Power 37kw
Thickness of the plate 3-4.5mm
Productivity 12m/min
Diameter of the roller 100mm
Weight About 10T
Voltage 380V 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:
We deliver K span roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of K span roll forming machines in China. As an ISO 9001:2000 Quality Control System certified company, our company has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Beside K span machine, we also professionally provide K span curving machine. Our roll forming machine can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
