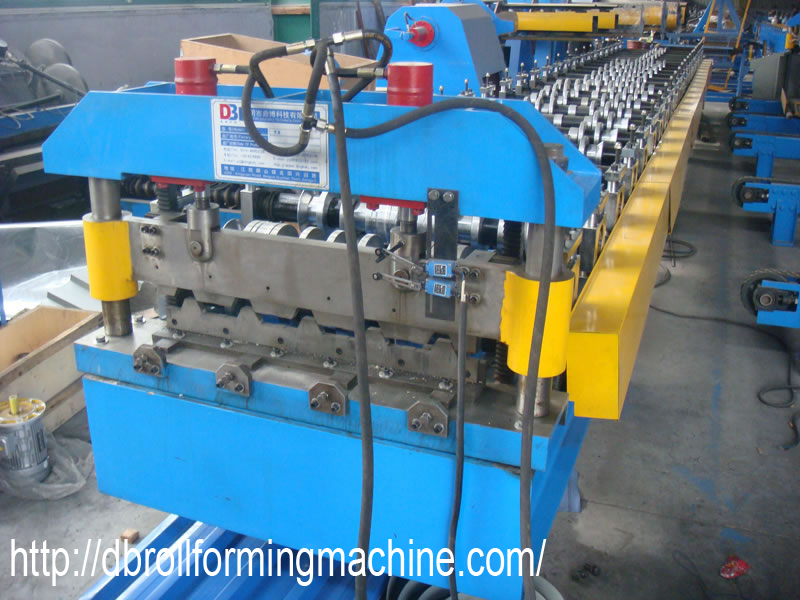

IBR Roll Forming Machine

IBR Roll Forming Machine
IBR Forming Machine IBR Roll Forming Machines

Description:
IBR roll forming machine is an essential tool for making roof panels. It is mainly composed of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. With very well performance in operation and little noise, IBR roll forming machines are widely used for producing tent roof applicable to factory, apartment, storage and free market.

Operation and Maintenance:
1.IBR roll forming machine, totally controlled by PLC, is fairly easy to operate. What the user only needs to do is inputting the number of products, length and punching dimension, and other related production data;
2.If users want to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3.Regular lubrication for chain wheel, bearing and speed reducer of IBR roll forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters of IBR Roll Forming Machine:

Main motor power 7.5kw
Drive Chain
Main shaft diameter ¢85mm
Roller material 45# forge steel with quench treatment (hardness: 58-62, chrome coat: 0.05mm)
Roll station 18 groups
Raw material 0.4-0.7mm
Width of raw material 925mm
Valid width after formed 686mm
Working speed 15m-25m/min(cutting time excluded)
Length Tolerance ±2mm
Weight of machine About 5 tons
Size of machine About  9000×1600×1500mm L × W ×H
Color of machine On request
Coder Omron
Control PLC of Panasonic (made in Japan, 380V, 50HZ)
Computer operating panel Touching screen
Cutting Hydraulic cutting
Hydraulic power 3KW
Blade material Cr12,quenched within 58℃ to 62°℃
Working pressure of roofing sheet machine 16mpa
Cutting tolerance ± 1.5mm

Packaging and Transportation:
We deliver IBR roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a professional manufacturer and supplier of IBR roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also supplies trapezoid roll forming machine, corrugated roll forming machine and double layer roll forming machine. Our IBR roof sheet machine can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
