Description:
Cap ridge roll forming machine also known as roof ridge cap forming machine, is widely used for making angle tiles for industrial factories, civilian buildings and wall board. The angle tiles possess good features of pretty appearance, durable service life and so on.

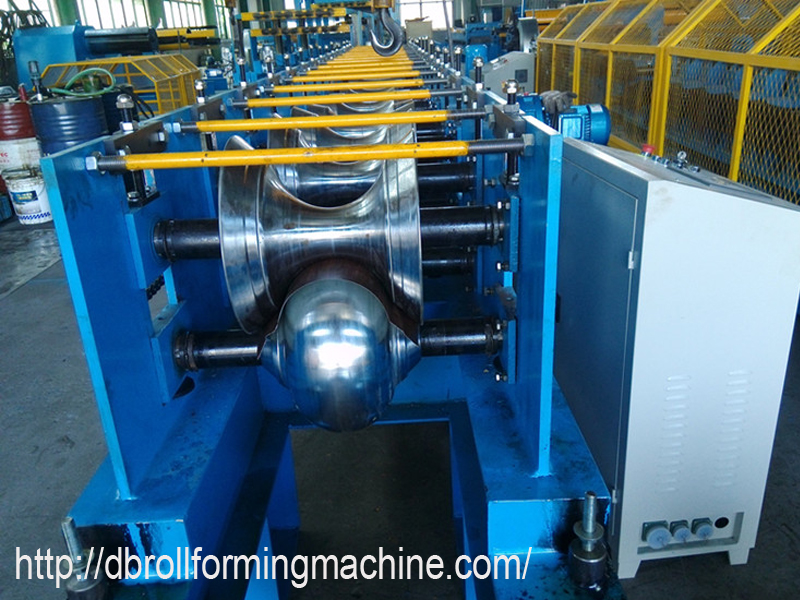

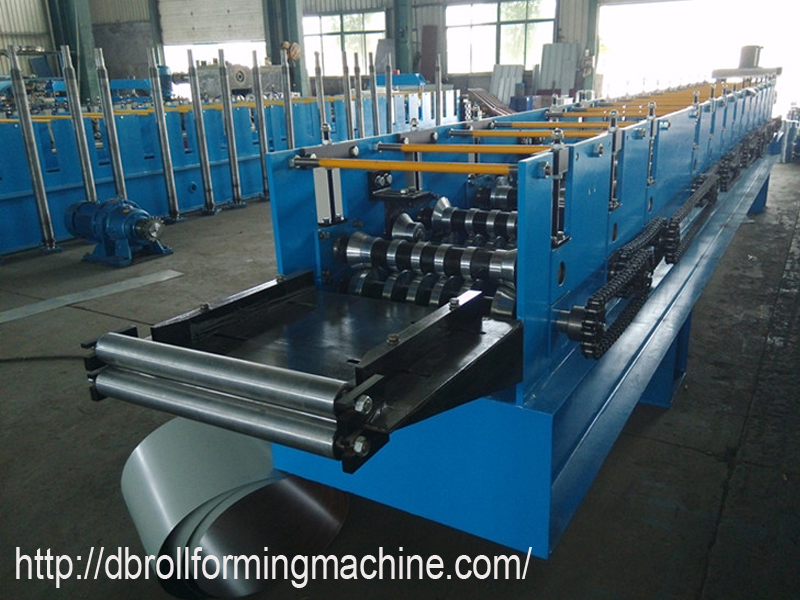

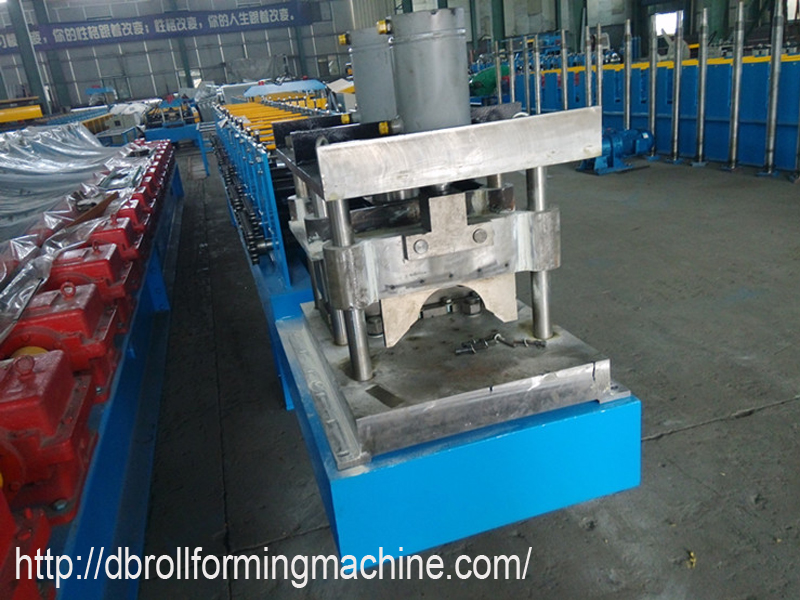

Cap ridge roll forming machine is composed of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system. Using roll forming machine to replace bending machine can greatly save the labor cost.
Operation and Maintenance:
1. Cap ridge roll forming machines totally controlled by PLC, are fairly easy to operate. They can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of roof ridge cap forming machines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, It have little noise.
Parameters:
| Suitable to process | Colored steel plate, galvanized board |
| Valid Width | 440mm |
| Rollers | 14 groups |
| Rolling material | Forging steel 45# |
| Rolling galvanization thickness | 0.3-0.7mm |
| Material of the cutting blade | Cr12mov |
| Dimensions | Approx 7.5m×1.0m×1.5m |
| Power | 4kw |
| Thickness of the plate | 0.3-0.7mm |
| Productivity | 3-6m/min |
| Diameter of the roller | 76mm |
| Weight | About 6T |
| Voltage | 380V, 50Hz |
| Processing precision | Within 1.00mm |
Packaging and Transportation:
We deliver cap ridge roll forming machines by sea shipping in container and nude packing.
Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of cap ridge roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also professionally provides customers with steel tile roll forming machine and glazed tile roll forming machine. Our roof ridge cap forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
